STEEL PALLET

上一个 下一个

STEEL PALLET

The best material in block making industry, high cost but unlimited life span.
Steel pallet is the best material the following are the parameters:

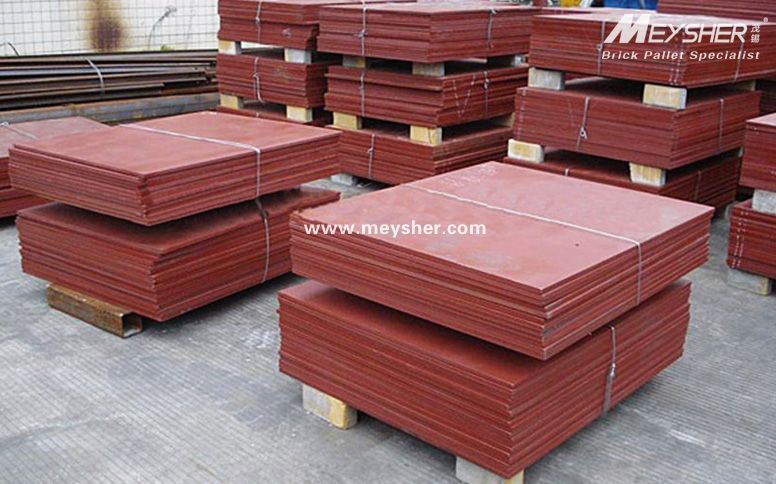

MEYSHER Solid steel pallet
Specifications
Raw materials  Produced from China.

*Modulus elasticity of the material: steel(1,8800,000kg/cm3), wood(600,000-800,000kg/cm3)
Cutting Power balanced CNC gas cutting
Tolerance Length and Width ±1.3mm, Diagonal ±4.0mm
Thickness:±0.5mm
Four comers 16mm radius(±3R)
Sharp edges Smooth treatment in all edges and comers
Flatness Within 1.5mm/ 1000.0mm in any direction
Vibration Transmittability is proportional to Modulus of elasticity of the material and contacted area.
Q’ty Shall be subject to a variation of plus one(3)% at seller’s option.


Light weight steel pallet
Specifications
Raw materials Corrosion Resistant Steel Produced from BAOSTEEL
*Modulus elasticity of the material: steel(1,880,000kg/cm3), wood(600,000-800,000kg/cm3)
Welding & Pressing special welding and pressing
Tolerance Length and Width ±4.0mm
Height:±0.6mm
Right angle allowance between 4 boards sides:±1.5 angle degree
Four comers 46mm radius(±2R)
Sharp edges Smooth treatment in all edges and comers
Flatness Within 1.8mm/ 1000.0mm in any direction
Vibration Transmittability is proportional to Modulus of elasticity of the material and contacted area.
Q’ty Shall be subject to a variation of plus one(3)% at seller’s option.
